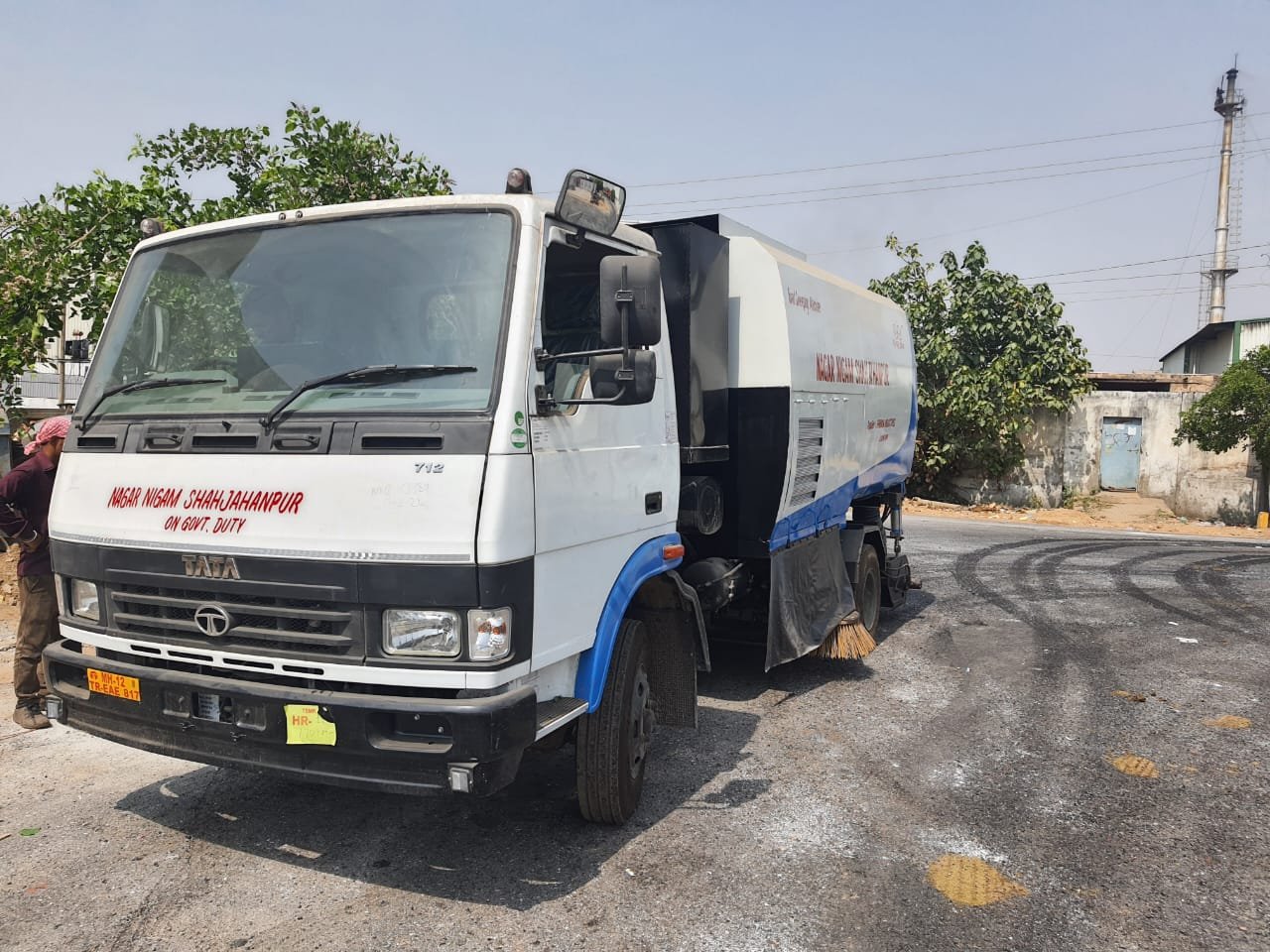

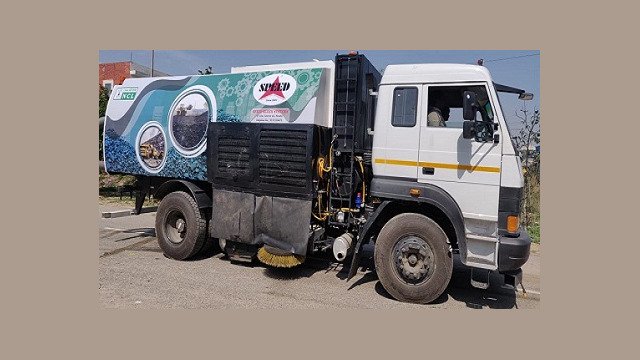

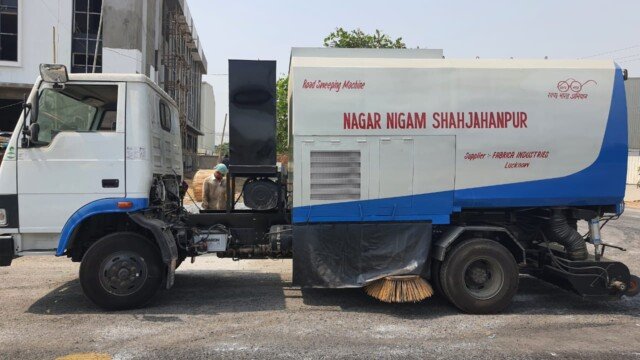

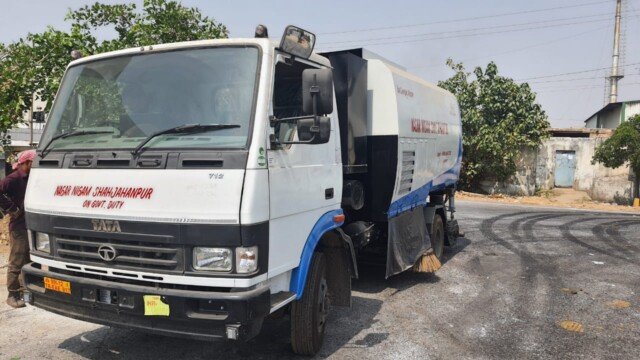

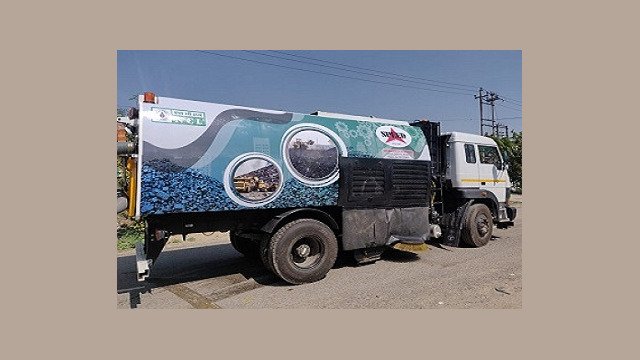

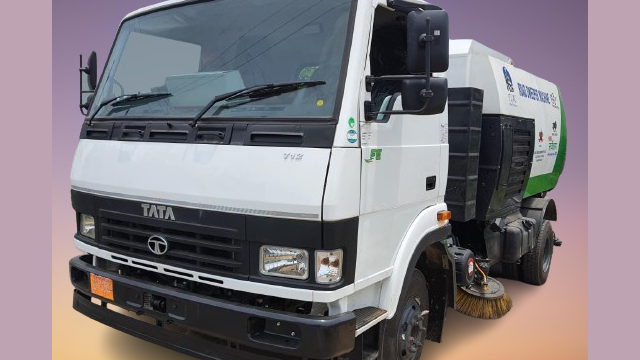

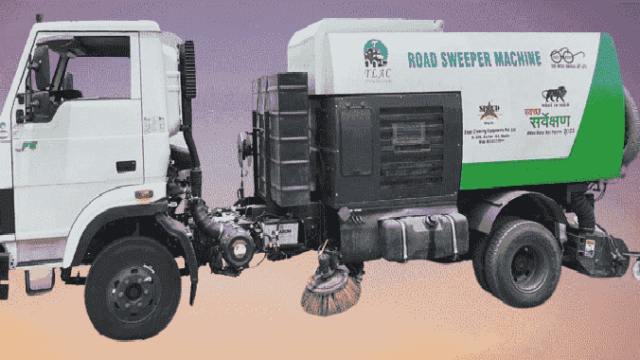

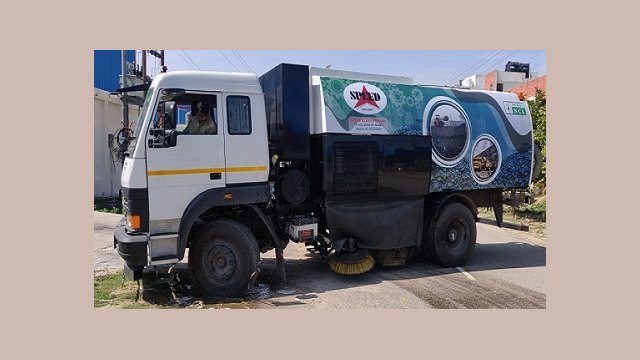

Truck Mounted Road SweeperModel Name: SRD 6000

A truck-mounted road sweeper, also known as a street sweeper truck, is a specialized vehicle designed to clean streets, roads, and other paved surfaces. It is equipped with brushes and suction mechanisms to remove debris, dirt, leaves, and other waste materials from the road surface.

Chassis: The cleaner is built on a truck chassis, which provides mobility and support for the washing machine. Chassis size and configuration may vary depending on cleaning requirements.

Washer brushes: A washer usually has one or more large brushes that rotate at the front of the car. These blades run at high speeds, sweeping debris from the road surface and moving it to the center of the sweeper.

Vacuum System: Located behind the vacuum brushes, a vacuum system is used to extract the cleaned debris and collect it in a hopper or bag in the truck. Vacuum systems often involve fans or blowers that create a vacuum, pulling debris into a collection area.

Water System: To help control dust and improve cleaning performance, truck sweepers often have a water system. This system includes water reservoirs and sprinklers that keep water on the surface of the road before or during the washing process.

Bins or bags: Collected debris is stored in bins or bags placed on trucks. The bag can be moved manually or hydraulically, depending on the type of sweeper. Control system: The washing machine operator can control various functions and settings using the control panel inside the car. This includes adjusting the speed of the grass, the power of the water, the irrigation and other factors that work.

Safety Features: Road sweepers often come with safety features such as flashing lights, indicators, and background alarms to improve visibility and prevent accidents during operation.

Car washers are often used by communities, street cleaners, and road maintenance workers to clean roads, prevent debris, and improve road safety and aesthetics. in general.

Features Of Truck Mounted Road Sweeper

  • High Efficiency Filtration & Automatic Filter Cleaning System Through Pulse Jet Air.
  • The M/C can be operated by a single operator and has a rated capacity of cleaning 30000 m² in 1 hour easily, quickly & safely.
  • The  M/C  is  equipped  with  hydraulic  transmission and is powered by a diesel engine.
  • Water Spray Nozzles Provided at all Brushes with High Pressure Water Pump.
  • In built ccd camera, water tank .
  • In buit Vacuum Hose for congested areas.

Technical Specifications

Application: Road Sweeping

Model No.: SWR-6000

One Horizontal Brush: 1900 mm

1 Horizontal Brush & 2 Side Brushes: 3000 mm

Sweeping Capacity: 30000 Sq. Mt/Hr

Hopper Storage Capacity: 6 CUM

Sweeping Speed:  1-10 Km/Hr

Engine:          Kirloskar Water Cooled Diesel Engine

Power:          4 Cylinder

Main Brush: 2200 mm

Side Brush: 650 mm (Diameter)

Hyd. Oil Tank: 60 Ltr

Dust Control Systems: High Efficiency Filtration & Automatic Filter Cleaning System Through Pulse Jet Air

Hydraulic Vibrator: Provided in Filter chamber to Clean The Filter in case of Heavy Chocking

Water Spray Systems: Water Spray Nozzles Provided with high pressure water pump

Water Tank: 500 Ltr

Specifications
Model No.
SWR-6000 Application
