Anti Smog Gun / Mist Fog CannonModel Name: SPEED FG15

A mist fog cannon is a tool used for lowering air pollution in towns and cities. A thin mist of water is sprayed into the air by the device while it operates, aiding in the collection and removal of pollutants like particulate matter (PM) and other dangerous compounds.

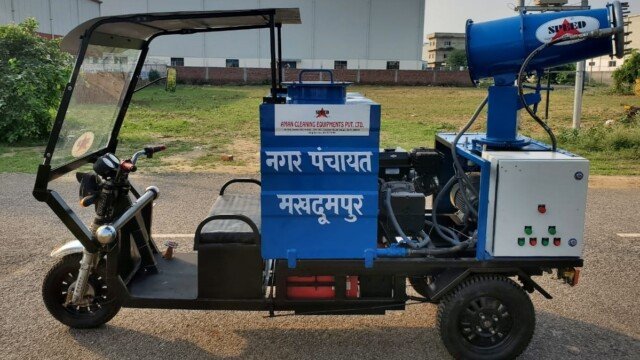

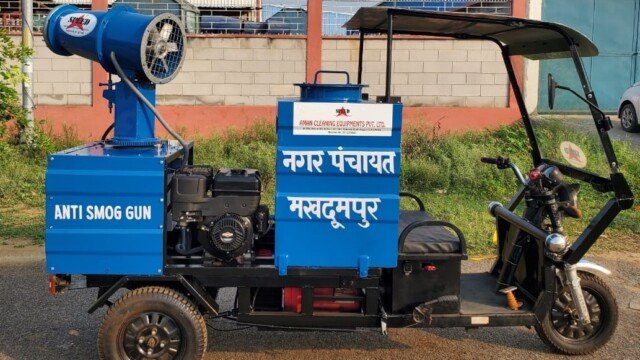

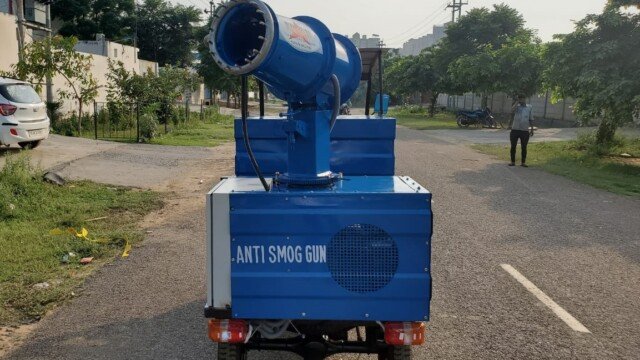

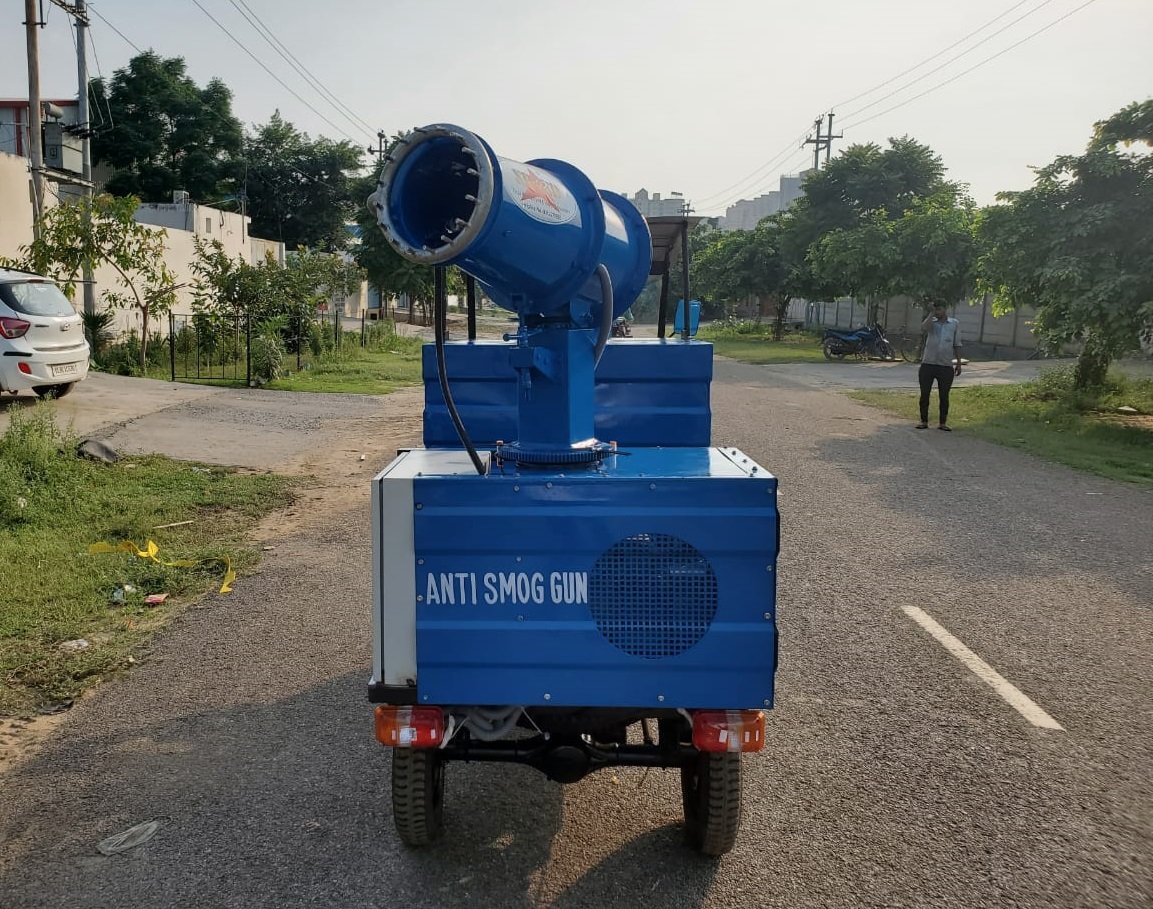

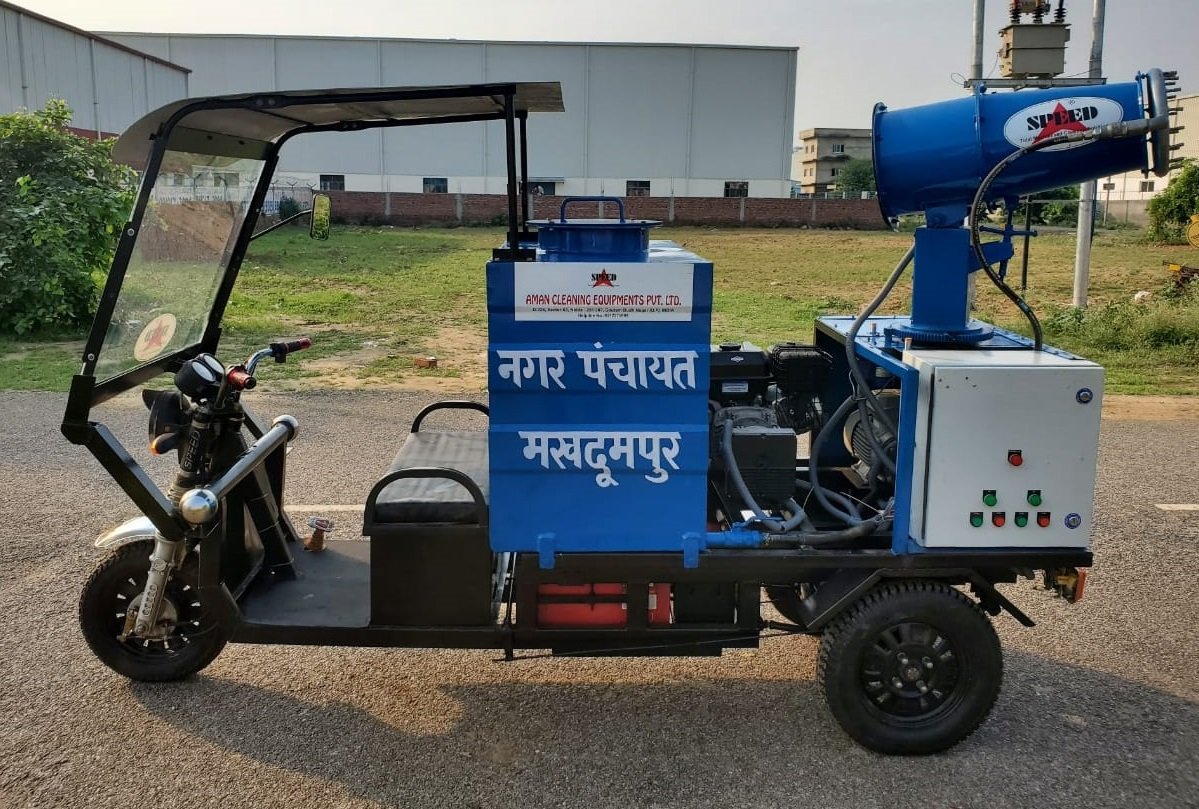

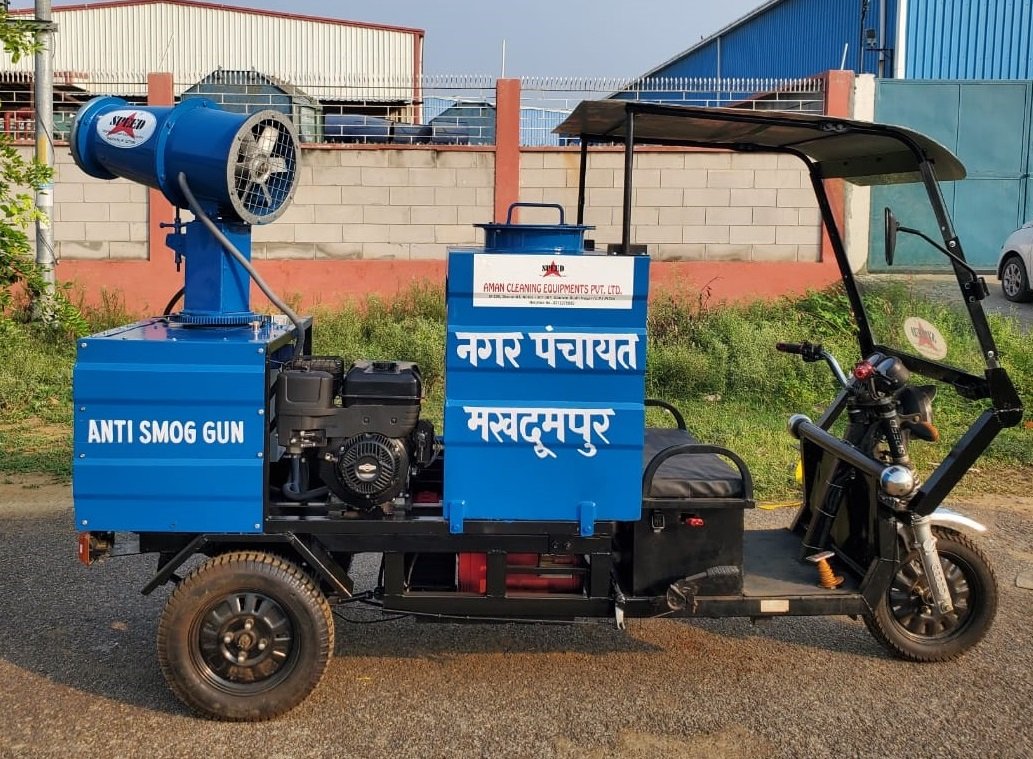

Normally set up on a truck or other vehicle, the mist fog cannon may be transported to different areas as needed. It is frequently employed in places with significant amounts of air pollution, such busy roads, industrial regions, and construction sites.

The anti smog gun is intended to be ecologically benign, capturing pollutants using just water and air. In comparison to other air pollution mitigation systems, its cost is also very affordable. With its easy-to-use control panel, the cannon can be operated with minimal training or effort. Its long range and high output make it ideal for industrial sites, airports, mines, farming operations, and other large scale outdoor areas. It is also capable of providing dust suppression in enclosed locations such as warehouses and factories. Thanks to its robust construction, the mist fog cannon is built to last and can withstand harsh weather conditions. With proper maintenance, it should provide years of reliable service.

  • SPEED FG15 Pole mounted mist cannon fog trolley mount , Throw: 15 mtrs (Windless Condition) Skid with heavy duty bearing for Automatic 360° rotation levelling jack, water filter support, and portable tower
  • Blower SPEED-FG15 complete with electric motor-vent, with high efficiency vent and air flow straightens, electric protection, aluminium impeller, stainless steel nozzles- 36 nos.
  • Automatic system for rotation (0°-360°) and manual raising (0 – 60) Electric control panel with on off command of the blower and pump with automatic oscillation option.
  • Electric high pressure water pump. 0.18 LPM at 70 bars, electric cables, PG, supports, electric control and supplementary protections.
  • Complete automatic control over 0 – 360° adjustable oscillation.
  • 12″ High pressure water feed hose.
  • Tower for fixing cannon at height- 5 ft > Factory testing of each unit supplied.
  • Total power: 2 KW 3 KVA Kirloskar Zen Set


  • Features Effective Cooling without wetting and suppression of dust & smog.
  • Auto control system, keep stable and suitable outdoor indoor environment.
  • Large spraying volume, long-term use.
  • Minimum Maintenance.
  • Industrial Electrical Protections.
  • Heavy duty equipment for 24X7 operations.
Model No.
